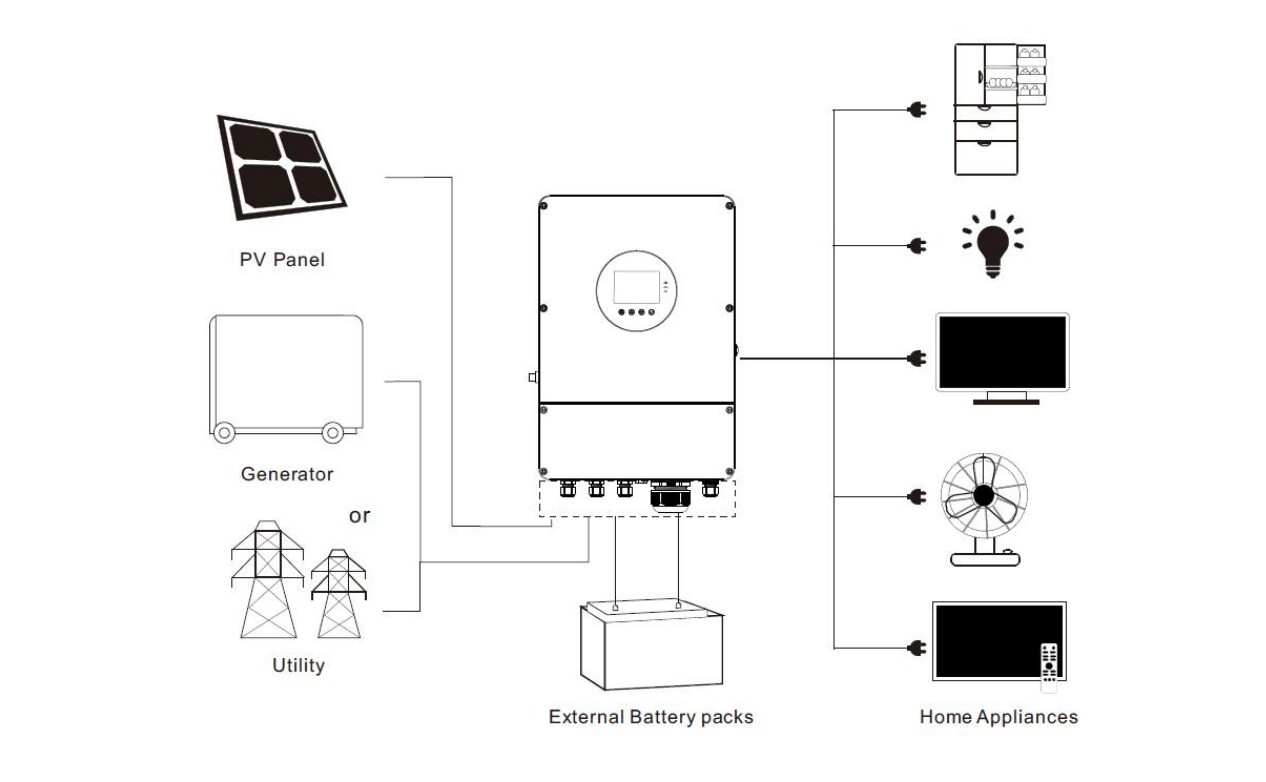

Energy Storage System All In One 5.5KW On Grid Solar Inverter
Products Description
|
Model Name
|
NH5500-48V
|
|
Battery Parameter
|
|
|
Battery Type
|
Lead-acid Battery or Lithium Battery
|
|
System Voltage
|
48V
|
|
Solar Input Parameter
|
|
|
Maximum PV Open Circuit Voltage
|
500Vdc
|
|
MPPT Voltage Range
|
120-450Vdc
|
|
Maximum PV Input Power
|
6000W
|
|
Utility Input Parameter
|
|
|
Rated input Voltage
|
220Vac/230Vac
|
|
Input Voltage Range
|
UPS Mains Mode:(170Vac~280Vac)+2%.APL Generator Mode:(90Vac-280Vac)2%
|
|
Frequency
|
50Hz/ 60Hz (Automatic Detect)
|
|
Utilization Efficiency
|
>95%
|
|
Transfer Time
|
10ms(Typical)
|
|
Charge Mode
|
|
|
Maximum PV Charging Current
|
100A
|
|
Maximum AC Charging Current
|
60A
|
|
AC Output (Back-up)
|
|
|
Rated Output Power
|
5500W
|
|
Rated Output Voltage
|
230Vac(200/208/220/240VacSettable)
|
|
Output Frequency
|
50Hz+0.3Hz/60Hz=0.3Hz
|
|
Peak Efficiency
|
>90%
|
|
Peak Power
|
11000W
|
|
Power Saving Mode
|
Non-ECO mode ≤100W;ECO mode ≦ 50W
|
|
General Specification
|
|
|
IP Class
|
IP65
|
|
Operation Temperature
|
-25℃~55℃(>45℃derating)
|
|
Storage Temperature
|
-25°C-60°C
|
|
Humidity
|
0%~ 100%
|
|
Dimension
|
556*345*182mm
|
|
Net Weight
|
20kg
|
