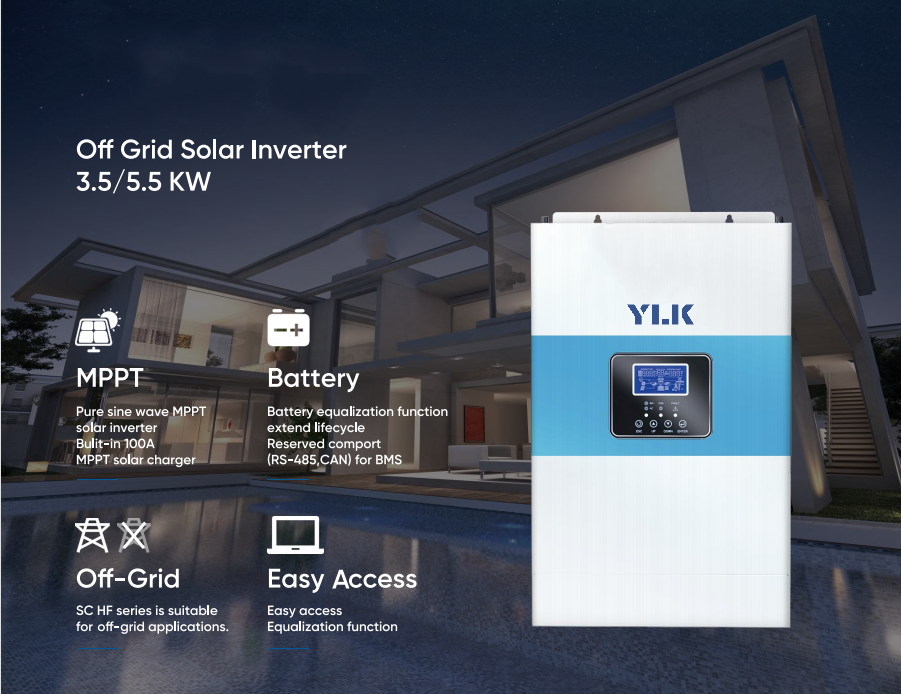

5500w External Battery Single Phase Frequency Off Grid Inverter For Home
Product Parameters
|
ND Solar Inverter
|
||
|
Model Name
|
ND 3500-24
|
ND 5500-48
|
|
Rated Power
|
3500VA / 3500W
|
5500VA / 5500W
|
|
Input (DC)
|
||
|
Voltage
|
230 VAC
|
|
|
Voltage Range
|
170-280 VAC ( Suitable for personal computers )
90-280 VAC ( Suitable for household appliances ) |
|
|
Frequency Range
|
50 Hz / 60 Hz ( Automatic adaptation )
|
|
|
Output (AC)
|
||
|
Grid voltage regulation(battery mode)
|
230 VAC ±5%
|
|
|
Surge Power
|
7000VA
|
11000VA
|
|
Peak Effciency
|
>93.6%
|
|
|
Switch Time
|
10ms
|
|
|
Waveform
|
Pure Sine Wave
|
|
|
Battery
|
||
|
Battery Voltage
|
24 VDC
|
48 VDC
|
|
Float Charge Voltage
|
27 VDC
|
54 VDC
|
|
Overcharge Protection
|
33 VDC
|
63 VDC
|
|
PV Charge & AC Charge
|
||
|
MAX PV Array Power
|
5000W
|
6000W
|
|
PV Maximum Open Circuit Voltage
|
500 VDC
|
|
|
MPPT Operating Voltage Range
|
120 VDC - 450 VDC
|
|
|
Maximum PV Charge Current
|
100A
|
|
|
Maximum AC Charge Current
|
80A
|
|
|
Physical Properties
|
||
|
Package Size D*W*H (mm)
|
565*403*217mm
|
|
|
Gross Weight (kgs)
|
10.5 KG
|
11.5 KG
|
|
Communication Interface
|
RS232 / USB (Standard) WiFi (Optional)
|
|
|
Working Environment
|
||
|
Humidity
|
5% to 95% Relative humidity (non-condensing)
|
|
|
Operating Temperature
|
-10℃ - 50℃
|
|
|
Storage Temperature
|
-15℃ - 60℃
|
|
