48V 100AH Lithium LiFePO4 Battery Pack Home Energy Storage Wall Mounted

Applicable for residential and commercial energy storage system.

With lithium iron phosphate cell in 16S2P configuration

Accompany with SEPLOS Smart BMS.

Each support 16packs in parallel to easily expand capacity.

Do not mix parallel the battery packs of different brands or models.

Product Detail

Items	Specifications
Rated energy(kWh)	5.12KWh
Configuration	2P16S
Nominal Voltage(V)	51.2V
Working Voltage(V)	42V~58.4V
Nominal Capacity(Ah)	100Ah
Rated charge/discharge Current(A)	50A/100A @25±2℃
Maximum charging current	100A@25±2℃
Maximum discharge current	100A @25±2℃
Working Temperature	0～40℃(Charge) -20～40℃(Discharge)
Humidity(%)	5~95%
Altitude Limited(m)	0-3000m
Weight(Kg)	48Kg±3kg
Dimension(mm)	580×460×172.4mm
Storage temperature and humidity	-10℃~35℃（Within one month of storage） 25±2℃（Within three months of storage） 65%±20%RH
weight	48kg±3kg
cycle life	4800 cycles @25℃ 50A charge and discharge current 70% standard capacity 90% DOD
IP grade	IP20

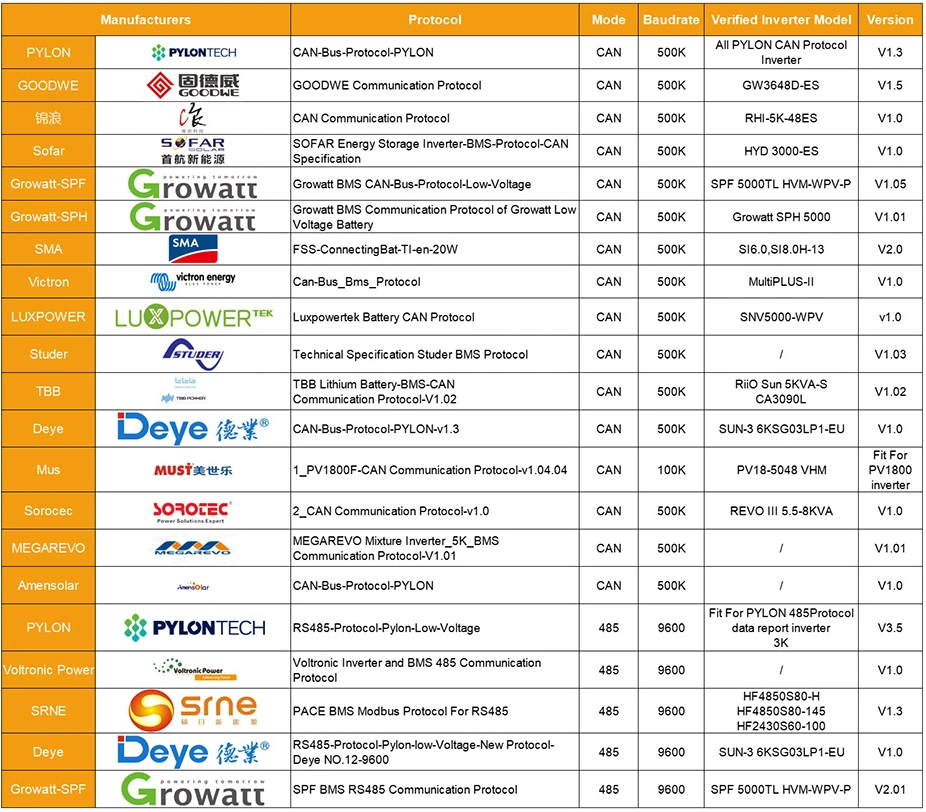

Communication mode	CAN&RS485
