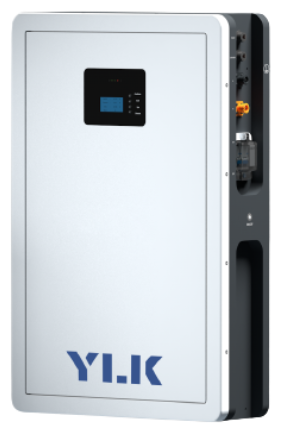

Home Energy Storage Emergency Power Supply For Solar Energy System

Applicable both for residential and commercial energy storage system .

Assembled with 3.2V 200Ah lithium iron phosphate cell in 4P16S configuration.

Intelligent BMS form 51.2V200Ah lithium battery system.

Each pack support 16packs in parallel to easily expand capacity.

Do not mix parallel the battery packs of different brands or models.

Product Detail

Items	Specifications
Configuration	4P16S
Nominal Voltage(V)	51.2V
Working Voltage(V)	41.6V~58.4V
Nominal Capacity(Ah)	200Ah
Rated energy(kWh)	10.24KWh
Rated charge/discharge Current(A)	50A @25±2℃
Maximum charging current	100A@25±2℃
Maximum discharge current	100A@25±2℃
Working Temperature	0～40℃(Charge) -10～40℃(Discharge)
Storage temperature and humidity	-10℃~35℃（Within one month of storage） 25±2℃（Within three months of storage）
Dimension(mm)	920×550×205mm
weight	95Kg±3kg
Cycle life	4800 cycles @25℃ 50Acharge and discharge current 90% DOD
IP grade	IP 65
Communication mode	CAN&RS485
Altitude Limited(m)	0-3000m
Humidity(%)	5~80%
