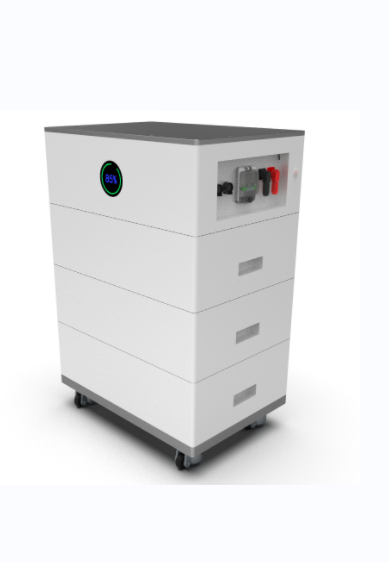

Stacked home energy storage boxes 10~25kw

Modular design, standardized production, strong commonality.

Easy installation, operation and maintenance .

Perfect BMS protection function and control system.

Over current,over voltage, insulation and other multiple protection design.

Product Detail

Battery module
Serial/ Parallel		16S1P
Module dimension		650233400mm
Module weight		31kg
Number of modules		3PCS	4PCS		5PCS
System parameters
Rated voltage		51.2V	51.2V		51.2V
Working voltage range		40V-58.4V	40V-58.4V		40V-58.4V
Rated capacity		300Ah	400Ah		500Ah
Energy		15.36kWh	20.48kWh		25.6kWh
Rated charge current		150A	200A		250A
Peak charge current	300A		400A	500A
Rated discharge current	150A		200A	250A
Peak discharge current	300A		400A	500A
Charge temperature		0-55℃
Discharge temperature		-10-55℃
Optimum temperature		15-25℃
Cooling method		Natural cooling
Relative humidity		5%-95%
Altitude		≤2000m
Cycle Life		≥5000 cycles@80%DOD ，0.5C/0.5C ，25℃
Communication interfaces		CAN/RS485/Dry
Protection		Over temperature, over current, over voltage, insulation and other multiple protection
Display		LED
Design lifetime		≥10 years
Certification		UN38.3/UL1973/IEC62619
Dimension( L* W* H)		773650400mm	973650400mm		1173650400mm
Weight	93kg		124kg	155kg
